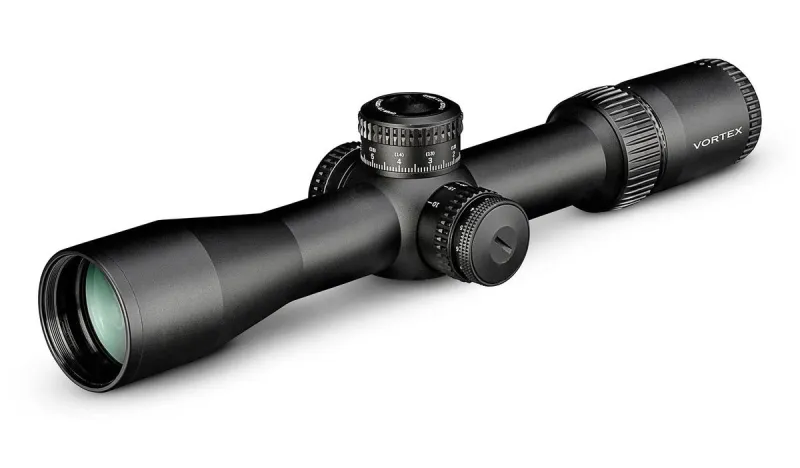

Vortex Strike Eagle 3-18×44 FFP EBR-7C MRAD

Vortex Strike Eagle 3-18×44 FFP EBR-7C MRAD
The gap between tactical mid- and long-range shooting is gone. Top off your carbine or DMR rifle with a first focal plane optic that’s versatile, tough, ultra-clear at any magnification, and specifically designed for rapid adjustment in fast-changing target scenarios.

Specifications

• Magnification:- 3-18x
• Objective Lens Diameter:- 44 mm
• Reticle:- EBR-7C (MRAD)
• Turret Style:- Exposed Elevation Capped Windage
• Tube Size:- 34 mm
• Adjustment Graduation:- .1 MRAD
• Parallax Setting:- 10 yds
• Max Windage Adjustment:- 18 MRAD
• Max Elevation Adjustment:- 45 MRAD
• Travel Per Rotation:- 10 MRAD
• Field of View:- 39.3′ – 6.7′
• Eye Relief:- 3.8″
• Length:- 13.3″
• Weight:- 27.3 oz

Features

Optical Features

• First Focal Plane Reticle – Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
• XD Optical System – Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in
• Illuminated Reticle – Provides precise aiming under low-light conditions.
• RevStop™ Zero System – Patented streamlined design offers a toolless zero stop for rock-solid return to zero after turret adjustments.
• Glass-Etched Reticle – Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
• Fully Multi-Coated Lenses – Anti-reflective coatings on all air-toglass surfaces provide increased light transmission for greather clarity and low-light performance.

Construction Features

• ArmorTek® – Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
• Single-Piece Tube – Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
• Aircraft-Grade Aluminum – Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
• Low Glare Matte Black Annodize – Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter’s position.
• Nitrogen Gas Purged Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions.
• Waterproof – Designed to withstand harsh weather conditions
• Fogproof – Nitrogen gas purging prevents internal fogging over a wide range of temperatures
• Shockproof – Designed to withstand the highest levels of recoil and impact.

Convenience Features

• Fast Focus Eyepiece – Allows quick and easy reticle focusing
• Throw Lever – The included throw lever can be installed for quick and easy magnification adjustments

Reticle

EBR-7C (MRAD)

Designed to maximize long-distance shooting and ranging abilities, the EBR-7C reticle can be used to effectively determine ranges, holdovers,windage corrections, and moving target leads.Ultra-precision laser etching on the glass reticle ensures that specifications are kept to the tightest tolerances possible. The fine center crosshair subtensions on the EBR-7C reticle were carefully chosen to provide the optimum balance between precision aiming and low light visibility. Includes windage reference dots on drop lines

INCLUDED IN THE BOX

• Sunshade
• Throw Lever
• Lens Covers
• Lens Cloth
• CR2032 Battery
• 2mm Hex Wrench
