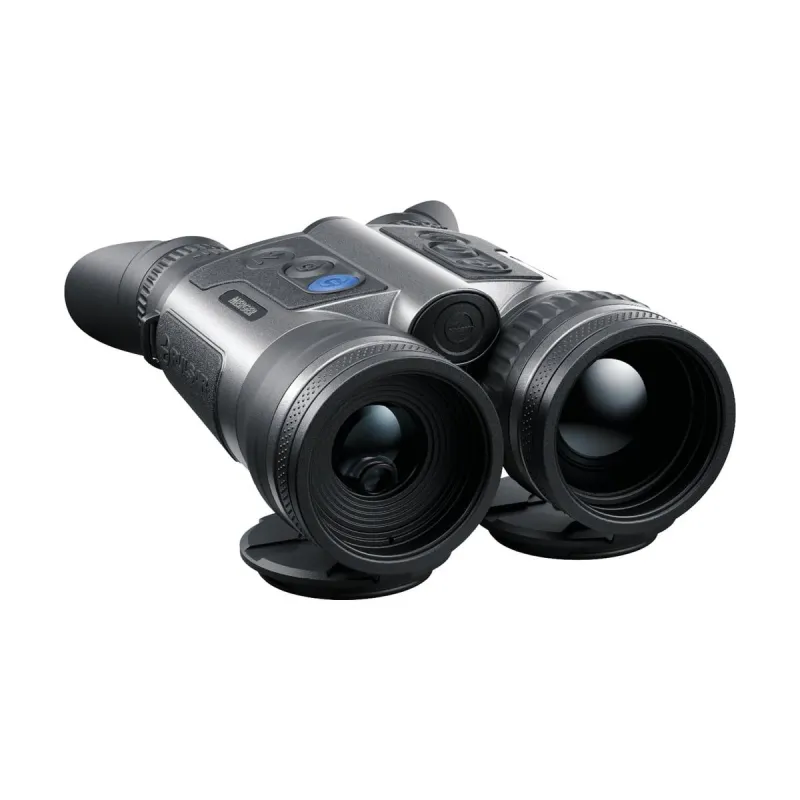

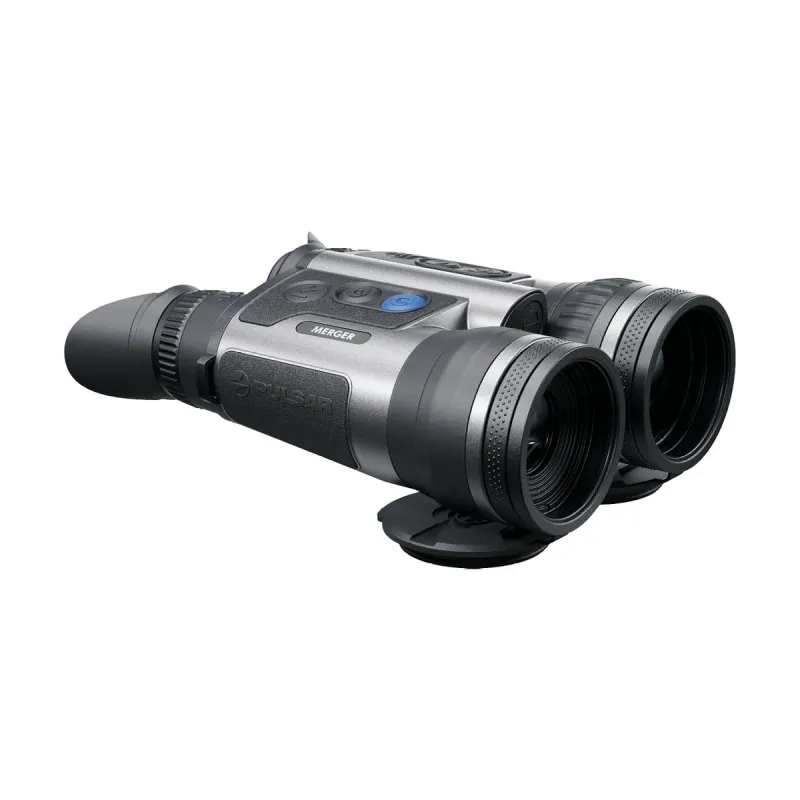

Pulsar Merger LRF XT50

Pulsar Merger LRF XT50
New Large Format HD Sensor
Introducing the Merger LRF XT50, the first pair of thermal imaging binoculars from Pulsar to feature a 1280×1024, 12µm, <40mK NETD HD thermal sensor. This sensor, combined with a powerful 50mm f1.0 objective lens and lossless pixel transfer, will achieve levels of image clarity that need to be seen to be believed and long-range detection capabilities that can reveal even the smallest heat source at distances reaching up to 2300m!

Such exceptional levels of image clarity are achieved, in part, thanks to the Merger LRF XT50’s minimal image compression — transmitting a thermal image to the bino’s display with almost no loss of detail and resulting in superb image quality with minimal noise.

And, with such an exceptional large-format sensor as this, the Merger LRF XT50 will even retain excellent image detail all the way through its 2.0-16.0 x magnification range, so you can closely inspect an object of interest with minimal loss of detail.

Comfortably Wide FOV
The Merger LRF XT50 offers a 17.5° field of view that is unmatched by any other thermal imaging binoculars, significantly expanding the observation area and reducing the need to search and scan whilst in the field. This incredibly wide FOV is achieved thanks to the unrivalled combination of HD sensor and powerful objective lens — effortlessly proving that you just can’t beat European engineering.

Built-in Image Stabilisation
For the first time in any Pulsar device, the Merger LRF XT50 introduces image stabilisation to the product range. A crucial feature when tracking fast-moving subjects in the field, image stabilisation eliminates camera shake and motion blur, allowing you to focus on the task at hand without worrying about distractions.

Extended Distance Measurements
With a built-in precision laser rangefinder, you can gauge accurate distance measurements between you and your observed object, allowing you to keep a safe distance and plot your movements without any unnecessary disturbances. The Merger LRF XT50 is the first device from Pulsar to feature an extended 1500m distance measurement range, with an accuracy of ±1m. These measurements can be taken in single steps or in continuous scanning mode.

Comfortable Observation
When it comes to comfortable viewing, two eyes are always better than one, which is why these thermal binoculars feature stunning 1280×960 twin HD AMOLED displays, designed to reveal every detail whilst reducing eye fatigue.

Classic Design, Modern Capabilities
And it isn’t just comfortable on the eyes. The Merger LRF XT50 features an ergonomically designed bodyshell that retains the classic aesthetics of a pair of traditional binoculars. This lends a sense of familiarity in the hand and ensures you remain just as comfortable by the end of your observation as you were at the start.

The bodyshell has been constructed using durable magnesium alloy designed to withstand all the knocks, bumps, scrapes, and tumbles one would expect during strenuous observations in the field.

Further protection is provided through the IPX7 rating, which protects against dust- and moisture ingress — meaning they will remain unimpeded by adverse weather conditions and even survive a drop into water. Plus, for those who need to venture into unforgiving climates, the Merger LRF XT50 remains guarded against extreme temperatures ranging from -25 to +50°C.

Hours & Hours of Observation
An advanced dual battery system features a built in, rechargeable Li-Ion battery and a replaceable, rechargeable APS3 battery providing up to 6 hours of battery life, allowing you to continue your observations through the day and into the night.

8 Colour Palettes
Eight colour palettes enable effective observation of the field of view, each of which allow the user to optimise the device for specific scenarios and adapt to changing conditions.

White Hot, Black Hot, and Red Hot are perfect for object detection; Rainbow and Ultramarine will increase recognition and identification capabilities; and Sepia, Red Monochrome, and Violet are best for long, night-time observation.

Integrated Video Recording
Built-in video recording (with audio) and still image capture capabilities, the Merger LRF XT50 ensures you never miss a memorable moment during your observations. Plus, with new image stabilisation technology built-in, your videos will be free from camera shake and motion blur, meaning you trust that, when you closely inspect any videos captured at a later date, they’ll be clear as day.

Images and videos captured on the device can be stored on the device’s generous 64GB internal memory or onto the Cloud via the Stream Vision 2 app.

Stream Vision 2 Compatibility
The Merger LRF XT50 features a built-in dual-band 2.4/5Ghz Wi-Fi module, enabling speedy connection to Android or iOS smartphones or tablets using the Stream Vision 2 app. This app offers a wide range of connectivity features, including:

Remote Control
Use a mobile phone as a wireless remote to control and adjust the device’s settings. See all the changes made on your smartphone or tablet screen in real-time. Recording footage or capturing still images can also be achieved using a mobile phone.

Browse & Share
Browse through all photos and videos captured on the device. It is even possible to download and share these files with friends.

Firmware Updates
Download all the latest features and stay up to date by remotely updating the device using Stream Vision’s firmware update abilities, ensuring the device is always running on the most current firmware.

What’s in the Box

• Merger LRF XT50 thermal imaging binoculars
• APS3 battery pack (x2)
• APS battery charger
• Power adaptor
• USB Type-C cable with USB Type-A adaptor
• Carrying case
• Neck strap
• Lens cloth
• Quick start guide
• Warranty card
• Tripod adaptor

• Thermal Sensor:- 1280×1024, 12µm, <40mK NETD
• Objective Lens:- 50mm f1.0
• Magnification:- 2.0-16.0 x
• Detection Range:- 2300 m
• FOV:- 17.5°
• Eye Relief:- 15 mm
• Frame Rate:- 50 Hz
• Image Stabilisation:- Built-in
• Display:- 1280×960 HD AMOLED
• Audio/Video:- Built-in video recording (with audio) and still image capture
• Video Format:- .mp4
• Image Format:- .jpg
• Video Resolution:- 1280×960
• Photo Resolution:- 1280×960
• Rangefinder:- Built-in precision laser rangefinder
• Rangefinder Wavelength:- 905nm
• Measuring Distance:- 1500 m
• Measuring Accuracy:- ±1 m
• Built-in Memory:- 64 GB
• Wi-Fi:- 2.4/5.0 GHz
• App Connectivity:- Stream Vision 2
• Body Material:- Magnesium Alloy
• Level of Protection:- IPX7 Waterproof
• Battery Life:- Up to 6 hours (depending on temperature)
• Power Source:- Dual rechargeable Li-Ion internal battery & rechargeable APS3 external battery
• Dimensions (HxWxD):- 197 x 140 x 72 mm
• Weight:- 950 g
