Pixfra Pixfra Arc A435

Pixfra Pixfra Arc A435
Powerful Thermal Optics

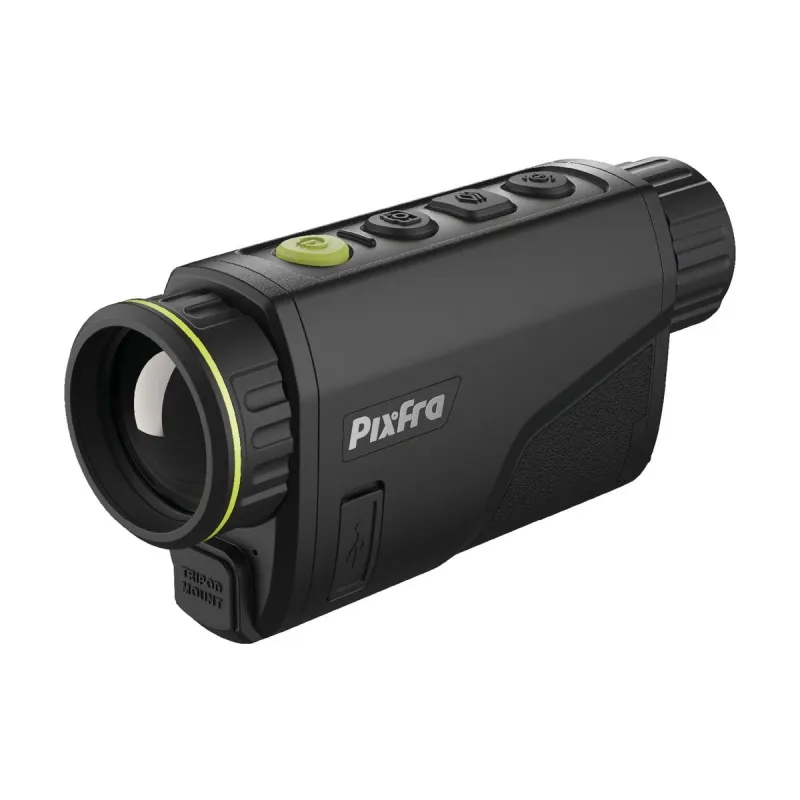

The Pixfra Arc A435 offers pro-grade thermal imaging capabilities in a compact, lightweight, and most importantly, cost-effective device. Featuring a highly sensitive 384×288, 12µm, <30mK NETD thermal sensor and a powerful 35mm f1.0 objective lens, this thermal imaging monocular achieves stunning optics and an impressive 1800m detection range; keeping you well informed when it comes to activity within the field of view and presenting a crisp and clear thermal image onto a full colour 1440×1080 OLED display.

Hours of Effective Observation

The Arc A435 features two replaceable, rechargeable batteries, each with a 7.5 hour power capacity, meaning you can keep your observations going well into the night without worrying about recharging.

Share with the Group

The Arc A435 is designed to enhance the viewing experience during group observations thanks to its ability to connect to four smart devices via the free Pixfra app. Through this intuitive app, the Arc can share its screen with up to four people located within 20m of the device — so, when one person spots an object or animal of interest, all four members of the group can observe at the same time, without having to share the device’s viewfinder.

The app is FREE to download for both Android and iOS.

Comfort & Portability

Designed first and foremost for comfort and resilience, the Arc A435 features an ergonomically designed bodyshell and convenient button arrangement, ensuring easy operation and comfortable observations over long periods.

Weighing less than 350g, the Arc A435 remains incredibly lightweight, reducing the likelihood of fatigue when in-hand and fitting comfortably in a pack or pocket when not in use.

A robust magnesium alloy casing offers protection against the everyday bumps and scrapes that occur in the field, and its IP67 waterproof rating means the device can be used in any conditions, withstanding a splash and protecting it against water ingress.

Plus, for those who need to venture into challenging environments, the Arc A435 will even remain unaffected in extreme temperatures from –30 °C to +50 °C.

• Thermal Sensor:- 384×288, 12μm, <30mK NETD
• Detector Type:- Vanadium oxide uncooled focal plane detector
• Spectral Range:- 8μm～14μm
• Frame Rate:- 50 Hz
• Objective Lens:- 35mm f1.0
• Field of View:- H: 7.8°; V: 5.9°
• Detection Range:- 1800m
• Magnification:- 1.68x
• Colour Palettes:- 6 (white hot/black hot /iron red/ alarm/amber/emerald)
• Close Focus Distance:- 2m
• Digital Zoom:- 1x, 2x, 4x, 8x
• Display Screen Dimensions:- 0.41 inch, OLED
• Screen Resolution:- 1440 x 1080
• Diopter:- -4D ~ +5D
• Eye Relief:- 15mm
• Uniformity Correction:- Auto; Manual
• Storage:- Built-in EMMC (32 GB)
• Audio Recording:- Yes
• Hot Spot Trace:- Yes
• Wi-Fi:- Yes
• Power Supply:- 5 V Type-C
• Battery Type:- 1 rechargeable Lithium batteries
• Battery Capacity:- 3,200 mAh
• Battery Operating Life:- Up to 7.5h
• Operating Temperature:- –30 °C to +60 °C (–22 °F to +140 °F)
• Storage Temperature:- –30 °C to +70 °C (–22 °F to +158 °F)
• Protection:- IP67
• Product Dimensions:- 151.8 mm × 42.3 mm × 74.3 mm (5.98″ × 1.67″ × 2.93″) (L × W × H)
• Packaging Dimensions:- 245 mm × 150 mm × 144 mm (9.65″ × 5.91″ × 5.67″) (L × W × H)
• Net Weight:- ≤340 g (0.75 lb) (battery excluded)
