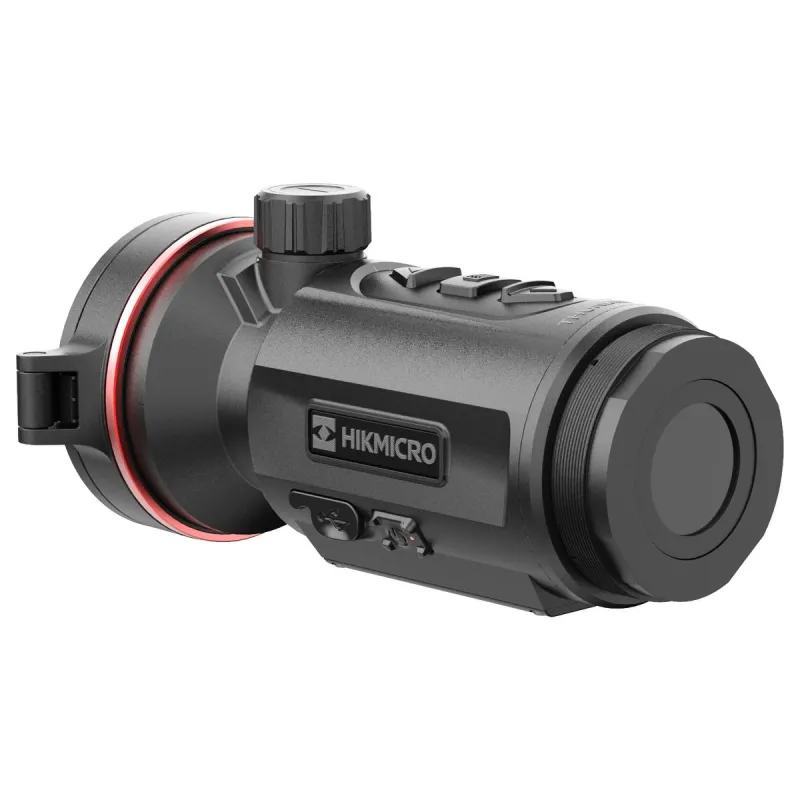

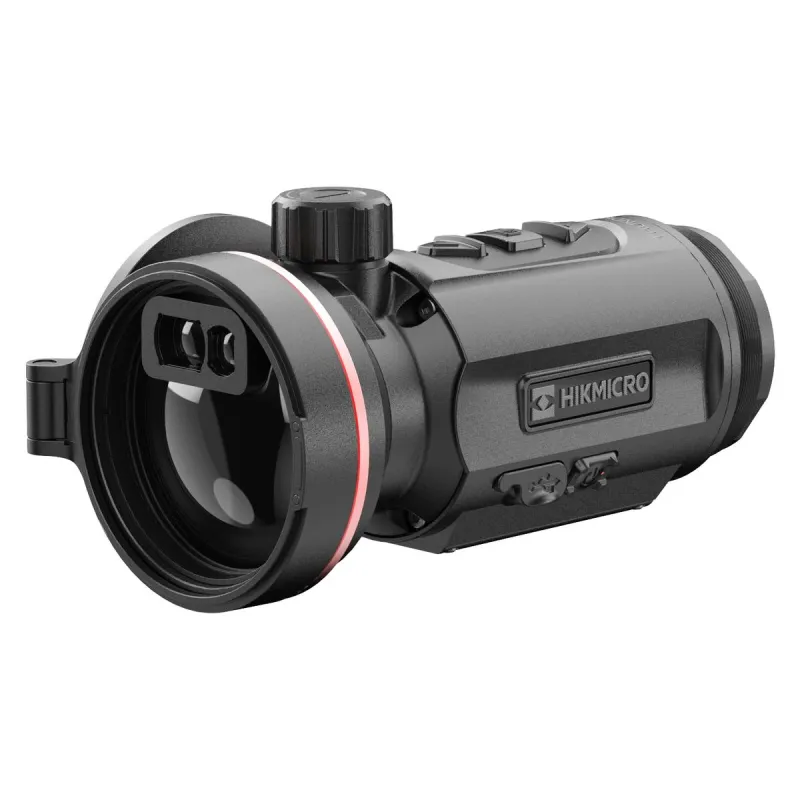

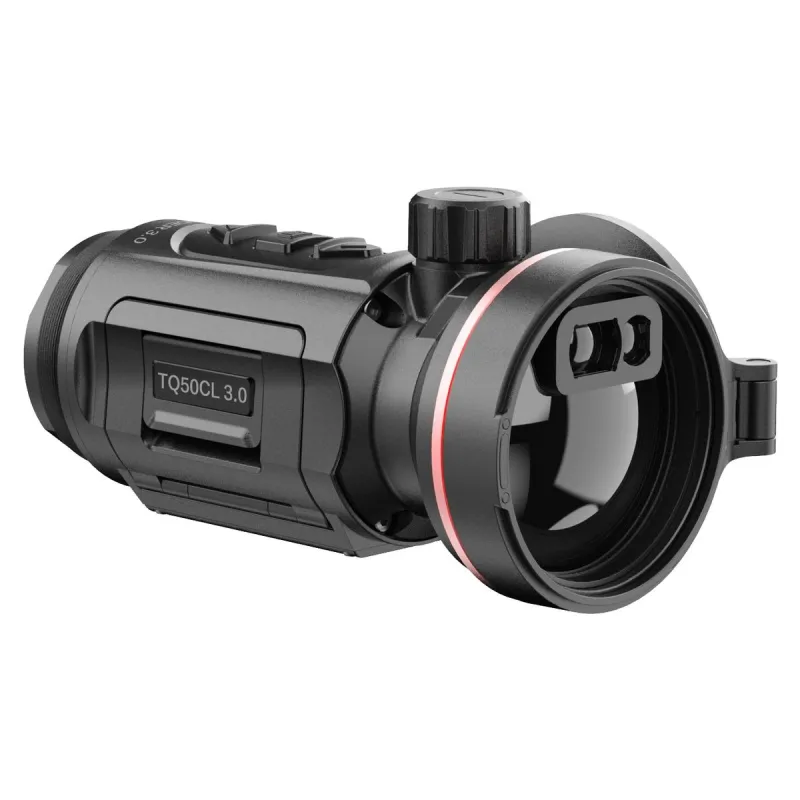

HIKMICRO HIKMICRO Thunder 3.0 640px 50mm Thermal Front Clip-on with LRF

HIKMICRO HIKMICRO Thunder 3.0 640px 50mm Thermal Front Clip-on with LRF
The HIKMICRO Thunder 3.0 front clip on enables you to hunt with the latest generation thermal technology while also retaining the experience of shooting with your traditional optical riflescope.

The Thunder 3.0 introduces many innovations to enhance your hunting including shutterless technology and 1000m Laser Range Finder (LRF) located discreetly inside the front objective lens which allows you to accurately judge the distance to your target.

Built around HIKMICRO’s latest generation 640x512px, Sub 15mK NETD sensors, the Thunder 3.0 is capable of delivering an unbelievably detailed image. Not only does this help you to positively identify animals but also gives you a clear view of the surroundings and background. This highly accurate thermal sensor will also continue to deliver in the most challenging conditions, such as rain and fog.

The Thunder 3.0 utilises a compact and ergonomic chassis which has been developed to ensure that all of the controls fall easily to reach from your shooting position. The thunder is paired to a Rusan Quick-Release clamp system which is tailored to fit your existing optic perfectly. This system allows you to quickly and repeatably add or remove the thermal unit from your optical scope with the twist of a locking ring.

In addition to the latest hardware, HIKMICRO are committed to developing advanced software to enhance your hunting experience. The Thunder 3.0 is loaded with new technology like Image Pro 2.0 which uses intelligent algorithms to build extra detail to the image.

Another unique technology which is set to revolutionise your thermal shooting experience is shutterless technology. The shutter is used in traditional thermal devices to control image noise. It is a physical process which requires your image to freeze for a few seconds to complete. During that interruption it is impossible to take your shot. To avoid this problem, HIKMICRO have developed software which has replaced the physical shutter and removed this problem.

Powered by the same removable battery as the Thunder 2.0, the Thunder 3.0 delivers an impressive run time of 6 Hours.

Features

• 640 × 512 resolution @12 μm thermal detector
• High sensitivity thermal module NETD < 15 mK (@25°C, F# = 1.0)
• 50 mm, F1.0 lens with detection range up to 2600 m
• 1920 × 1080 resolution 0.49-inch OLED display
• Built-in lens laser rangefinder up to 1000m, with ballistic calculation
• HIKMICRO Shutterless Image System (HSIS)
• Rechargeable and Replaceable Li-on Battery, 5h continuous operation
• High shock resistance up to 1000 g/0.4 ms

Specs

Thermal Module Specifications

• Image Sensor: Uncooled Focal Plane Arrays
• Max. Resolution: 640 × 512
• Frame Rate: 50 Hz
• Pixel Interval: 12 μm
• Response Waveband: 8 μm to 14 μm
• Lens (Focal Length): 50 mm, F1.0
• NETD (Noise Equivalent Temperature Difference): Less than 15 mK (@25 °C, F# = 1.0)
• Detection Range: 2600 m
• Focus Mode: Focus Knob
• Min. Focusing Distance: 10 m
• Magnification: 1×
• Field of View (H × V): 8.8° × 7.0°
• Field of View @100m: 15.4 m × 12.3 m
• Recommended Magnification of Day Scope: 1-15x

Image Display

• Display: 1920 × 1080, 0.49 inch, OLED
• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Exit Pupil: 25 mm
• Eye Relief: 20 mm
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm
• HSIS (HIKMICRO Shutterless Image System): Yes
• Image Pro 2.0: Yes

System Features

• Record Video: On-board Video Recording
• Capture Snapshot: Yes
• Virtual Reticle: Yes
• Standby Mode: Yes
• Storage: Built-in EMMC (64GB)
• Hotspot: Yes
• Hot Track: Yes
• Reticle: No
• Audio Recording: Yes
• Recoil-activation Recording: Yes
• Max. Recoil: 1000 g / 0.4 ms
• Local Album: Yes
• Image Calibration: Yes
• Zeroing Profiles: 5

Power Supply

• Battery Type: Replaceable and Rechargeable Li-ion Battery Pack
• Battery Operating Time: ≥ 5h (25 °C, with hotspot off and LRF on)
• Type-C Power Supply: 5 VDC, 2 A
• Supports External Power Supply: Yes

General Specifications

• Protection Level: IP67
• Dimensions: 150.3 mm × 83 mm × 78.1 mm
• Weight: 540 g (with battery)
• Working Temperature: -30°C to +55°C (-22°F to 131°F)
• Body Material: Magnesium Alloy (Body & Lens Cover)
• Center Height: 35.5 mm

Laser Rangefinder

• Safety Class for Laser: Class 1
• Wavelength: 905 nm
• Max. Measuring Range: 1000 m
• Measurement Accuracy: ±1 m
• Min. Measuring Range: 10 m
• LRF Module in Lens: Yes
