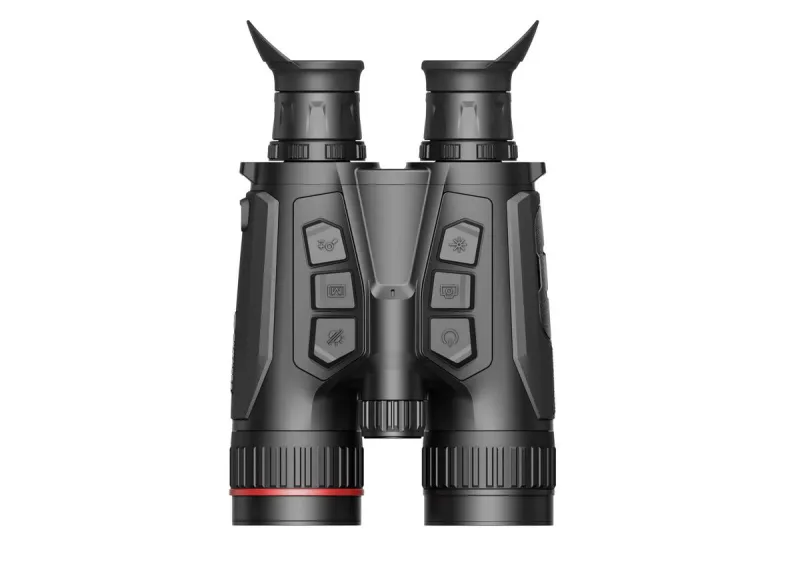

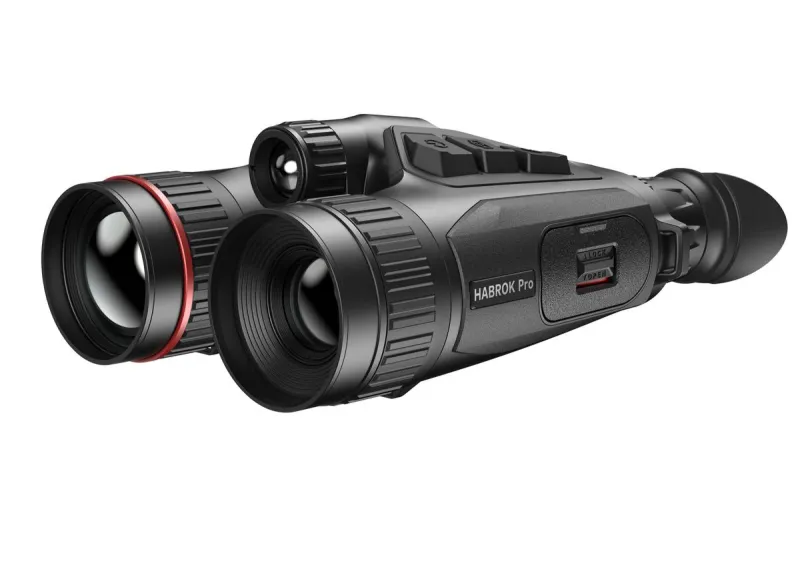

HIKMICRO Habrok Pro 640px 50mm Thermal Binocular with 4K Optical camera and LRF (HQ50L)

HIKMICRO Habrok Pro 640px 50mm Thermal Binocular with 4K Optical camera and LRF (HQ50L)
Loaded with cutting-edge technology, the latest generation HIKMICRO Habrok Pro thermal binoculars offer the detection power of high resolution thermal alongside the observation power of the latest 4K day & night camera – all in a compact and ergonomic binocular chassis.

Built around HIKMICRO’s incredible new 640x512px, Sub 15mK NETD sensor, the Habrok Pro redefines what is possible from a thermal binocular. The high resolution sensor delivers an unbelievably crisp and detailed image at base mag while also allowing you to use the digital magnification to zoom in without pixilation. This industry leading thermal sensor provides the detail you need to positively locate and identify animals, people or birds while also giving you a clear view of the surroundings and background. This highly accurate thermal sensor will also continue to deliver in the most challenging conditions, such as rain and fog.

With the press of the button the Habrok switches to its 4K Day & Night camera to deliver a bright, vibrant, full colour image in daylight that allows you to view your surroundings in mind blowing detail. As twilight sets in and the ambient light drops the Habrok continues to shine with unparalleled light gathering capacity. The built in IR torch will activate in total darkness and the camera continues to deliver a high resolution, black and white image. New for the Habrok Pro is image stabilisation to minimise hand shake when observing at high magnification.

The eyepieces offer a wide and immersive OLED display. You can quickly and easily adjust the interpupillary distance and focus so each eyepiece perfectly matches your eyes. The soft rubber eyecups can be folded back which makes it easy for glasses wearers and comfortable for extended periods of use.

The removable battery pack will power the Habrok Pro for up to 9 hours and there are two batteries supplied in the box so you can be confident that you will never be caught without power. The Habrok Pro is also supplied with HIKMICRO’s new binocular harness which makes the perfect way to carry your binoculars on adventures or a secure way to store them when not in use.

The Habrok Pro will also record and playback thermal and optical images, video and audio in its internal memory, and share it to nearby mobile devices via the dedicated HIKMICRO Sight App. Also on-board is 1000m laser range-finding, GPS and digital compass. The Habrok Pro is HIKMICRO’s new flagship device for many diverse applications, with unrivalled image detail, thermal sensitivity, performance and features.

Key Feature

• 640 × 512 resolution @12 μm thermal detector
• High sensitivity thermal module NETD < 15 mK (@25°C, F# = 1.0)
• 50 mm, F1.0 lens with thermal detection range up to 2600 m
• 3840 × 2160 4K ultra high-resolution CMOS detector
• 1920 × 1080 resolution 0.49-inch OLED display
• Built-in 850 nm IR illuminator and Laser Rangefinder of 1000 m measuring distance
• 7 h+ continuous operation time with replaceable battery pack
• 975 g lightweight, with a compact and ergonomic design

Specification

Thermal Module

• Image Sensor:- VOx Uncooled Focal Plane Arrays
• Max. Resolution:- 640 × 512
• Frame Rate:- 50 Hz
• Pixel Interval:- 12 μm
• Response Waveband:- 8 μm to 14 μm
• NETD:- Less than 15 mK (@25°C), F#=1.0
• Lens (Focal Length):- 50 mm, F1.0
• Focus Mode:- Focus Ring
• Detection Range:- 2600 m
• Min. Focusing Distance:- 5 m
• Magnification:- 4.3x to 25.8x (6x)
• Field of View(H × V), Degrees/m @100 m:- 8.8° × 5.3°/ 15.4 m × 9.3 m

Optical Module

• Image Sensor:- 1.88” Progressive Scan CMOS
• Max. Resolution:- 3840 × 2160
• Focal Length:- 60 mm, F2.2
• Min. Working Distance:- 3 m
• Focus Mode:- Focus Ring
• Magnification:- 5.5x to 22.0x（4x)
• Field of View (H × V), Degrees/m @100 m:- 7.3°× 4.1° / 12.6 m × 7.2 m
• Smart IR:- Yes
• IR Illuminator Wavelength:- 850 nm
• Viewing Range at Night:- 400 m
• Replaceable IR Illuminator:- Yes

Image Display

• Display:- 0.49 inch, OLED, 1920 ×1080
• Palettes:- Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto
• FFC (Flat Field Correction) Mode:- Auto, Manual, External Correction
• Exit Pupil:- 8 mm
• Eye Relief:- 15 mm
• Diopter (Range):- -5D to +3D
• Brightness Adjustment:- Yes
• Tone Adjustment:- Cold, warm
• Contrast Adjustment:- Yes
• Zoom Pro:- Yes
• Image Pro 2.0:- Yes

System

• Record Video:- Yes
• Capture Snapshot:- Yes
• Audio Recording:- Yes
• Standby Mode:- Yes
• Storage:- Built-in EMMC (64 GB)
• PIP:- Yes
• Hotspot:-Yes
• Hot Track:- Yes
• Digital Magnetic Compass:- Yes
• GPS:- Yes
• Local Album:- Yes

Power Supply

• Battery Type:- Replaceable and Rechargeable Li-ion Battery Pack
• Battery Operating Time:- ≥7 h (-20°C, with hotspot off, LRF and Zoom Pro on)
• Type-C Power Supply:- 5V DC, 2A. Supports External Power Supply

General

• Protection Level:- IP67
• Dimension:- 142.9 mm × 79.7 mm × 230.5 mm (5.6″ × 3.1″ × 9.1″)
• Weight:- 975 g with battery pack
• Working Temperature:- -30℃ to +55℃
• Interpupillary Adjustment Range:- 60 mm to 74 mm
• Mounting Adapter:- 1/4“-20-UNC

Laser Rangefinder

• Safety Class for Laser:- Class 1
• Wavelength:- 905 nm
• Max. Measuring Range:- 1000 m
• Measurement Accuracy:- ±1 m
• Min. Measuring Range:- 10 m
