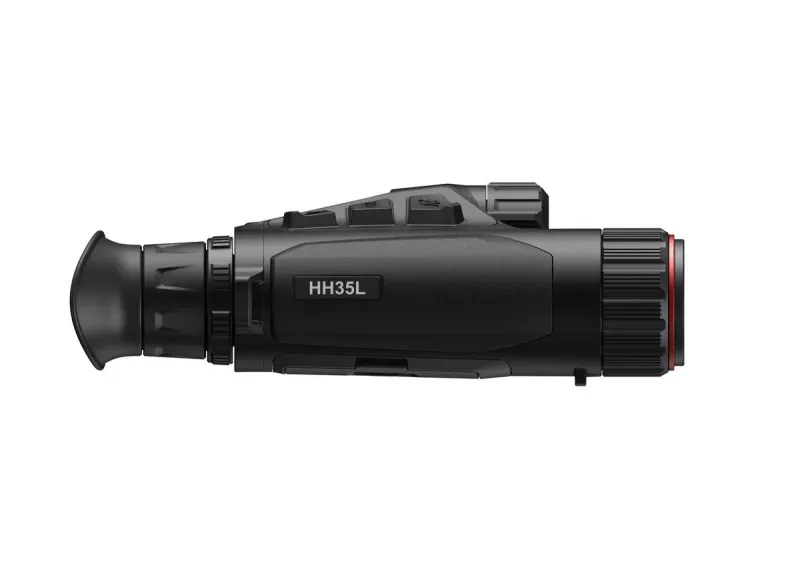

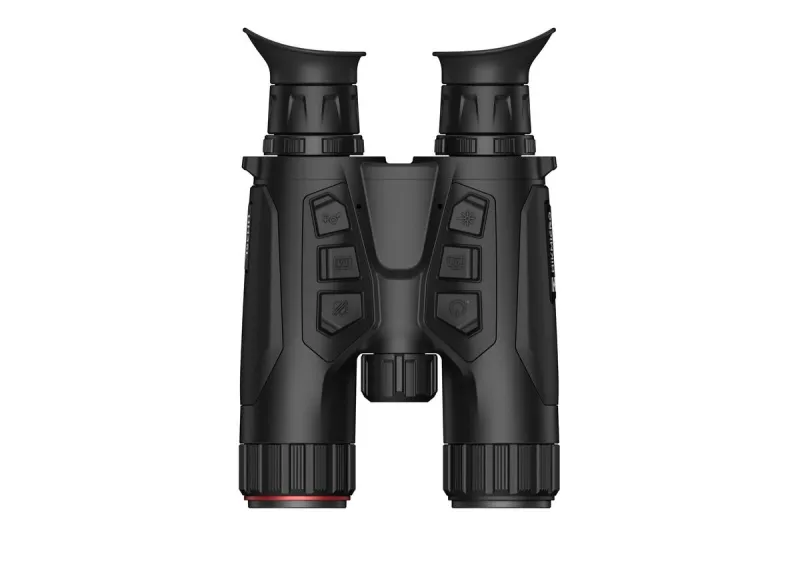

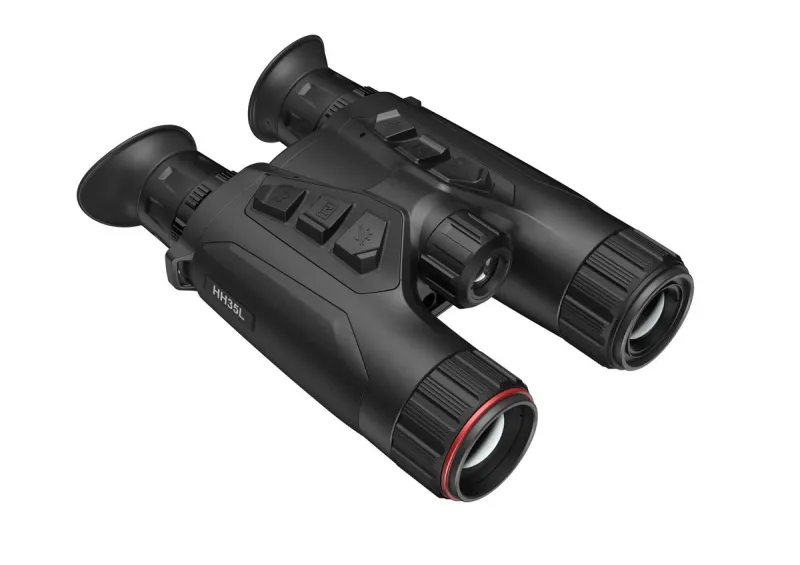

HIKMICRO Habrok 35mm 384px Multi-spectrum Binoculars with 1000m LRF (HH35L)

HIKMICRO Habrok 35mm 384px Multi-spectrum Binoculars with 1000m LRF (HH35L)
Advanced multi-channel binocular with powerful appeal for many applications. High sensitivity thermal imaging plus high-resolution day & night digital optical channel.

Features

• Latest generation Sub 20mK NETD thermal sensor
• Full colour day & bw night camera
• 1000m laser range finder
• Solid magnesium alloy, waterproof & ergonomic chassis
• Removable 18650 batteries

MAIN

• Sensor:- 384x288px @ 12µm
• Objective Lens (Focal Length):- 35 mm
• Detection Distance:- 1800 m

SENSOR

• Type:- VOx Uncooled Focal Plane Arrays
• Resolution, pixels:- 384 × 288 px
• Pixel pitch, µm:- 12µm
• Frame rate, Hz:- 50 Hz
• NETD:- <20mK

THERMAL OPTICS

• Objective lens:- F1.0
• Focal Length:- 35mm
• Magnification:- 3.5x – 28x
• Min. Focusing Distance:- 3.5m
• Field of view:- 7.5°x5.6° (H × V)°

Optical Camera

• Image Sensor:- Progressive Scan CMOS
• Resolution:- 2560 x 1440px
• Focal Length:- 31mm
• Aperture:- F1.2
• Min. Focusing Distance:- 3m
• Magnification:- 2.9x to 23.3x
• Field of view:- 13.9° × 7.8° (H × V)°
• Smart IR:- Yes
• Viewing range in darkness:- 400m

Laser Range Finder

• Max Measuring range:- 1000m
• Safety Class for laser:- Class 1
• Measurement accuracy:- ± 1m

DISPLAY

• Type:- 12.5mm, OLED
• Resolution, Pixels:- 1920 x 1080
• Thermal Colour Palettes:- Black Hot, White Hot, Red Hot, Fusion
• Optical Colour Palettes:- Full colour Day time, Black and White Night time

Video Recorder

• Build in memory, Gb:- 64 Gb
• Image Capture:- YES
• Video Record:- YES
• Audio recording:- YES

Additional features

• Zoom Pro:- YES
• Standby Mode:- YES
• Picture in Picture:- YES
• GPS & Compass:- YES
• Image Pro Mode:- YES
• Hot Tracking:- YES
• WiFI hot spot:- YES
• HIKMICRO Connect App support:- YES

Environmental

• Degree of protection, IP code:- IP67
• Dust protection:- Protected against dust ingress
• Water protection:- Protected against temporary submersion in water
• Operating temperature range:- -30 °C to 55 °C

WEIGHT & SIZE

• Dimensions, mm:- 138 mm x 68 mm x 212 mm
• Interpupillary Adj.:- 60mm to 70mm
• Weight, kg:- 780 g

POWER SUPPLY

• Battery type:- 2x 18650 Removable battery
• “Operating time on battery (WiFi & Hot tracking disabled)”:- 6 Hours continuous running
• Compatible with USB Powerbank:- YES
• Charging interface:- External charger (Supplied)

Warranty Period

Main Unit:- 3 Years
